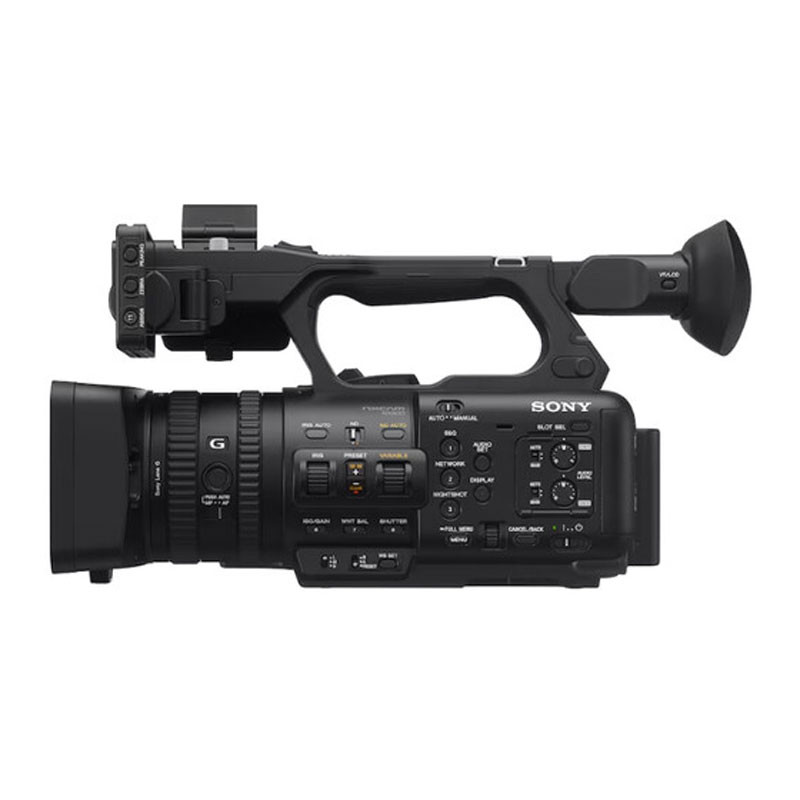

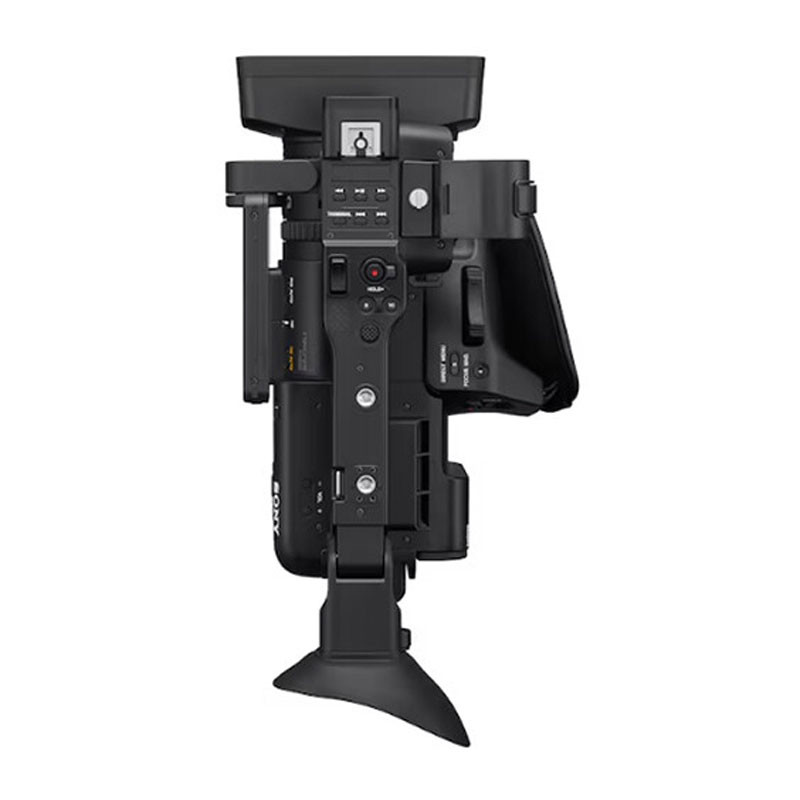

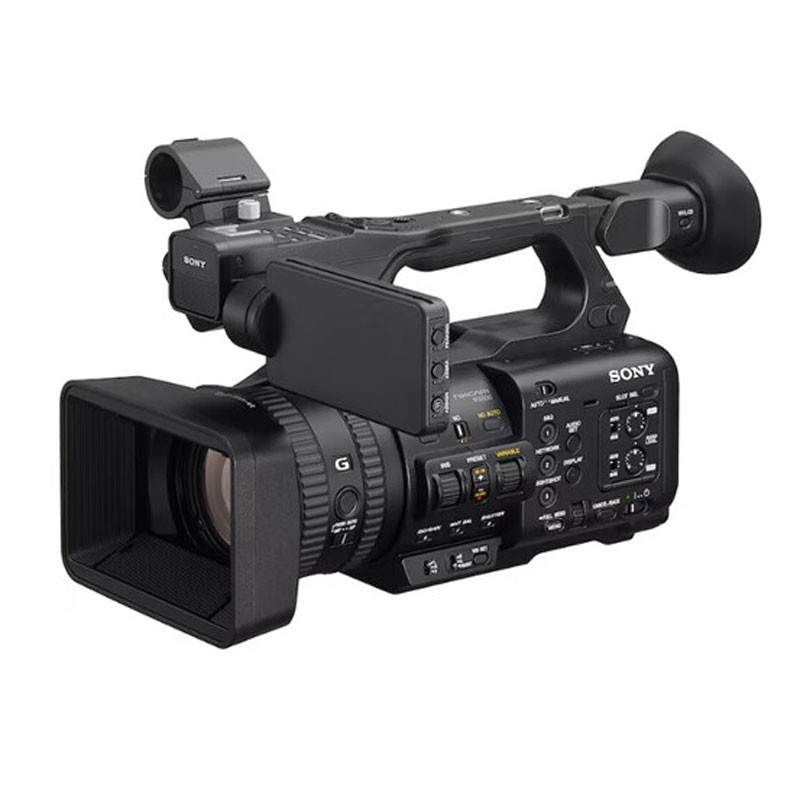

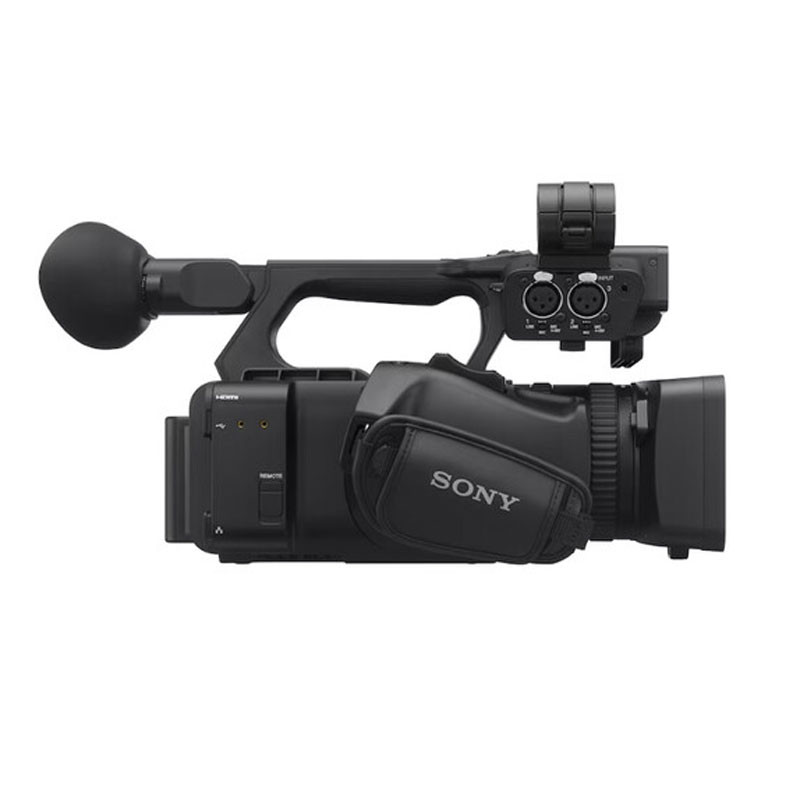

On-the-go creators looking for rapid autofocusing, auto-framing, and quick content sharing in a compact form can turn to the Sony HXR-NX800 4K HDR 1" Sensor NXCAM Camcorder. Geared for high mobility, this professional camcorder features a 1"-type Exmor RS CMOS sensor for up to UHD 4K resolution, AI-assisted autofocus and auto-framing, a variable electronic ND filter, BIONZ XR processing, and color matching with Sony Cinema Line cameras. It sports a longer 20x optical zoom and has built-in dual-band 2.4/5 GHz Wi-Fi and an Ethernet for direct streaming via RTMP/RTMPS, SRT protocols, and FTP options. Use the Sony Monitor & Control app to view your capture using your smartphone or tablet.
1" Exmor RS CMOS Sensor
The HXR-NX800's 1.0"-type Exmor RS CMOS sensor uses its stacked design to provide optimal image quality, faster readout speeds, and excellent low-light performance. It produces extraordinary 4K imagery using 5K oversampling with full-pixel readout.
Longer 20x Optical Zoom
Capture views ranging from close-ups to wide angles in tight interiors using the 20x G-series zoom equivalent to a 35mm full-frame 24-480mm. Tap the Clear Image Zoom function to expand the zoom range to 30x in 4K and 40x in HD.
BIONZ XR Processing
The latest BIONZ XR TM image processor enables higher frame rates, faster autofocus, improved ATW control, and excellent noise reduction. Extracting maximum performance from the high-resolution image sensor lets you capture the most subtle textures and finest detail. 5K oversampling with full-pixel readout condenses ample image information into stunning UHD 4K60 video.
Advanced AI-Assisted Autofocus
The HXR-NX800's AI-assisted deep learning provides precise human-subject recognition. With 81% coverage, its Fast Hybrid autofocus system offers better support for both Subject Recognition AF and Real-Time Tracking.
Auto Framing
Reliably keep track of your subjects using the Auto Framing function, which automatically recognizes human forms and adjusts the frame to keep your subject centered. Especially handy for solo shooters, Auto Framing mimics manual capture while letting you engage with your subject.
Flexible Frame Rates
Record up to UHD 4K60 video and high frame rates of up to UHD 4K120 and 1080p HD at 240 fps. Slow motion rates include 4x at 4K30 and 5x at 4K24p with high-speed autofocus to keep your subject sharp.
Pro Broadcast and Film Looks
Presets for S-Cinetone, ITU709, 709tone, HLG Live, HLG Mild, and HLG Natural can be further tweaked with black, matrix, and other adjustments. The HXR-NX800's content can be color-matched with footage from other Sony broadcast and Cinema Line cameras.
Full Auto Mode
When the action gets too hectic, you can simply switch to a fully automatic mode with a single switch. Auto settings include ND, Iris, Gain, Shutter, and White Balance modes.
Built-In Variable ND Filter
The HXR-NX800 incorporates a variable ND filter function. Provides a wide 1/4 to 1/128 ND range. Use it to seamlessly adjust your exposure with the twist of a dial.
Easy File Transfers
The HXR-NX800 lets you upload proxy and original clips straight from a memory card to a cloud or FTP server. Transfer files automatically when each recording stops after registering the destination server in the camera. You can even record proxy clips in segments and transfer them sequentially during recording. The optional, paid Creator's Cloud for Enterprise C3 Portal application makes cloud transfers easy with even quicker availability of video files for editing and sharing.
Live Streaming
Stream directly from the camera using Wi-Fi or via a wired Ethernet connection. You can stream to compatible platforms using RTMP/RTMPS and SRT protocols.
Advanced Image Stabilization
Built-in image stabilization minimizes camera shake, giving you the smoothest footage possible. Active Mode stabilization uses both optical and electronic elements to make your handheld shots look like you used a gimbal.
OLED Viewfinder and 3.5" LCD
- The HXR-NX800 offers an OLED viewfinder and a 3.5" articulated LCD for monitoring your capture.
- The high-contrast OLED EVF provides a clear 2.36MP view while blocking ambient light.
- The LCD can be positioned for the best view, and it comes with a sun hood.
Recording Options
A choice of recording options means you can select the best solution for each project you capture. Choose XAVC S-I for the highest quality, post-friendly 10-bit 4:2:2 4K (QFHD) recording using Intra-Frame H.264. XAVC HS-L (H.265) and XAVC S-L (H.264) provide a choice of 4:2:2 or 4:2:0 with Long GOP recording for extended recording times and file-saving efficiency. XAVC HS enables the recording of smaller proxy files (up to 16 Mbps) for previewing and editing.
4-Channel Audio
Combine the MI (multi-interface) shoe and XLR connectors to record up to four channels of audio. Audio dials let you quickly adjust levels for two channels without needing to scroll through a menu tree.
Sony Battery Power
Like many other Sony cameras, the XHR-NX800 camcorder uses BP-U35, BP-U70, or BP-U100 packs, enabling you to use your existing supply of batteries.
Specs
- Sensor Resolution: 14 Megapixel
- Image Sensor: 13.2 x 8.8 mm (1"-Type) CMOS
- Image Stabilization: Optical in Integrated Lens, Digital
- ISO Sensitivity Range: 250 to 16,000
- Internal Recording Modes: H.264/H.265/XAVC HS/XAVC S, UHD 4K (3840 x 2160) up to 120 fps, 1920 x 1080p up to 240 fps
- Media/Memory Card Slot: Dual Slot: CFexpress Type A / SD (UHS-II)
- Battery Type: Sony BP-U Series
- Built-In ND Filter: 2 to 7 Stop Electronic ND Filter
- Capture Type: Video Only
- Shutter Type: Electronic Rolling Shutter
- Shutter Speed: 1/8000 to 64 Seconds
- Focal Length: 7.71 to 154.21mm (35mm Equivalent: 24 to 480mm)
- Optical Zoom Ratio: 20x
- Max Digital Zoom: 1.5x (in UHD 4K), 2x (in 1080p)
- Maximum Aperture: f/2.8 to 4.5
- Filter Size: 72 mm
- Focus Control: Autofocus, Manual Focus
- Gamma Curve: HDR-HLG, Rec709, S Cinetone, Sony S-Log 3
- Broadcast Output: NTSC/PAL
- Built-In Microphone: Stereo
- Audio Recording: 4-Channel 24-Bit 48 kHz LPCM Audio
