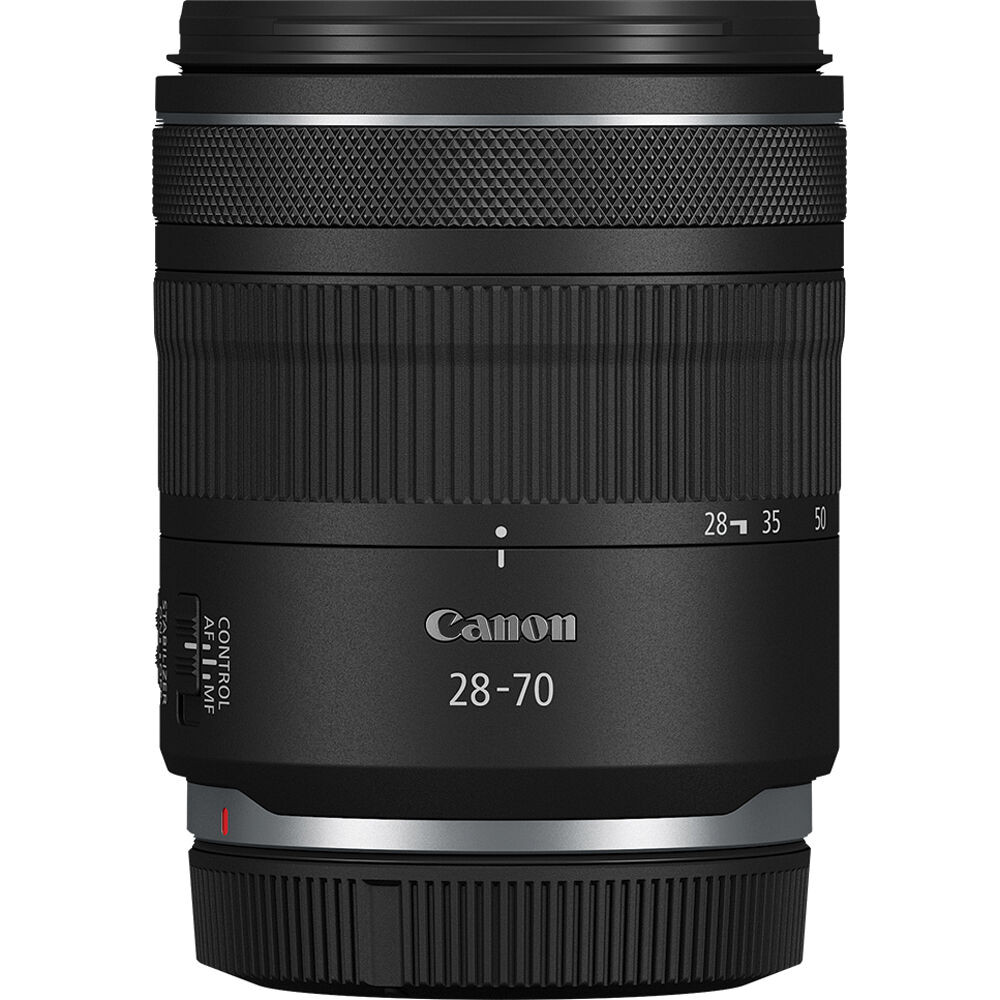

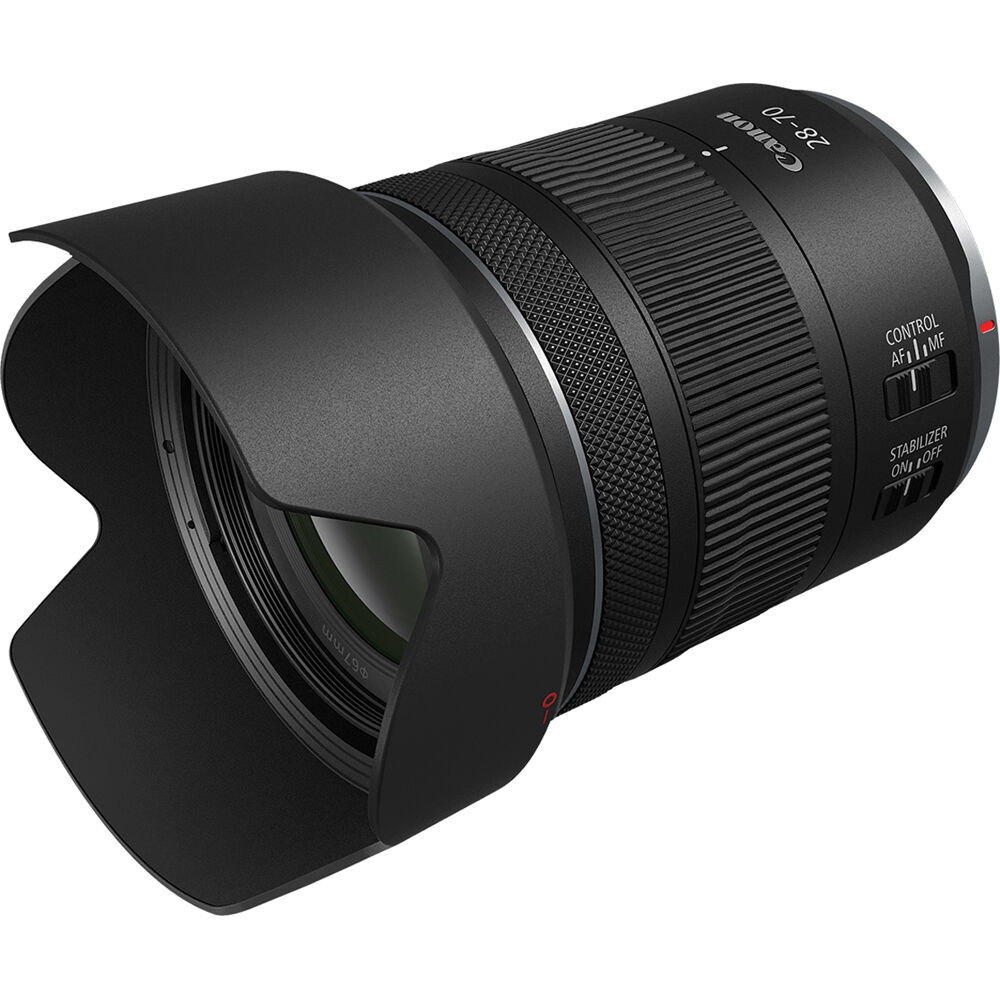

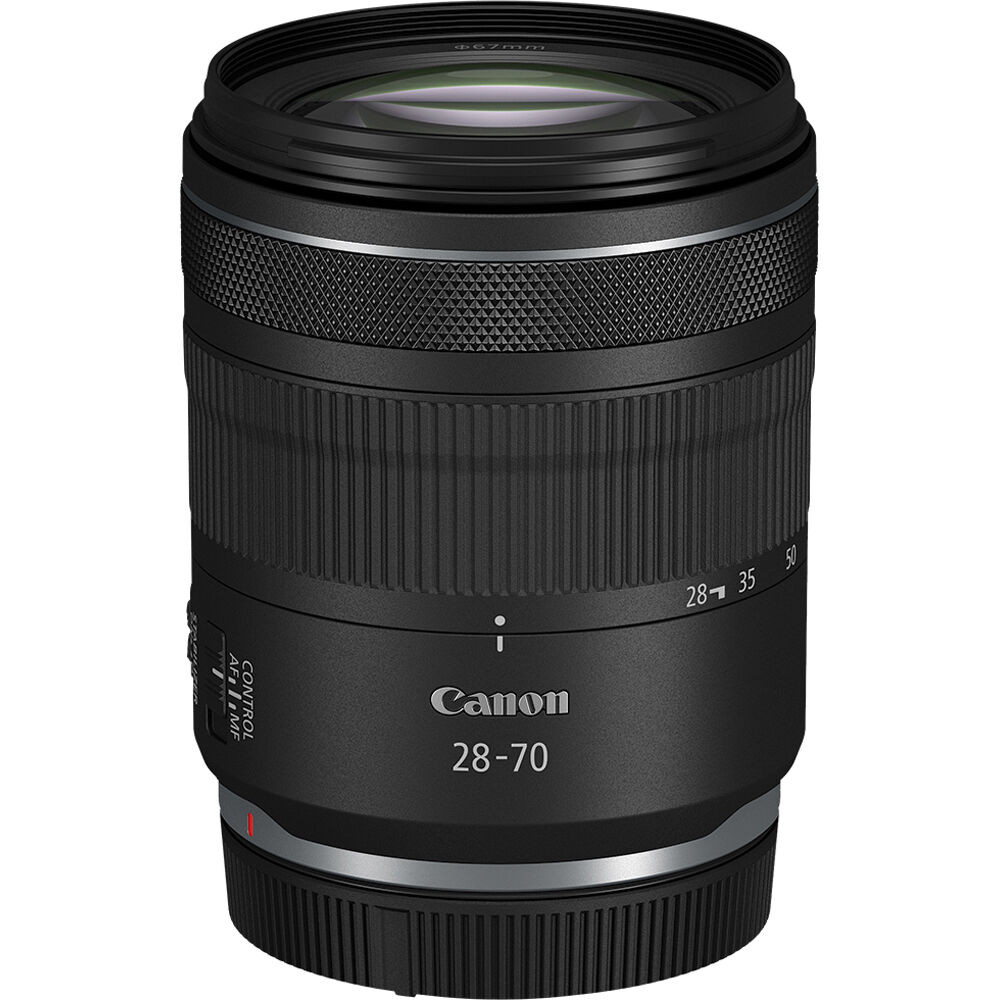

Canon RF 28-70mm f/2.8 IS STM lens

A fast, compact and lightweight RF Series f/2.8, 28-70mm zoom lens for full-frame cameras,
with image stabilisation and weatherproof design, ideal for travel photography, landscapes, portraits and everyday creative work.

Explore your creativity with the large f/2.8 aperture

Take the next step towards creative shooting with the large f/2.8 aperture, which encourages you to work in low light and isolate your subject with a wonderfully shallow depth of field.

Small. Lightweight. You can take it anywhere

Thanks to the RF socket design and intelligent retraction mechanism, up to 8 stops are available when used with EOS R cameras with built-in stabilisation, it is just 92.2mm long, weighs less than 500g and the weatherproof insulation provides extra protection against the elements.

Capture sharp images with outstanding stability

Thanks to a high-performance 5.5-stop image stabilizer, which ensures stable shots even at longer shutter speeds, while UD and aspherical lens elements guarantee incredible sharpness.

Take stills and videos with great controls

Think even for film productions, with focus shift correction and precise AF, made possible by an ultra-quiet STM motor for fast stills and smooth focus transitions.

Focus on the moment with intuitive confidence

Use the control/focus ring to quickly adjust shutter speed, aperture or ISO while shooting, and for full manual control, use the AF/MF/CONTROL switch to be in control all the time.

Optical characteristics/technical data

Image size: full frame

Angles of view (horizontal, vertical, diagonal): 65°-29°, 46°-19° 30', 75°-34°

Objective structure (member/group): 15/12

Special optics: 2 UD, 2 aspherical GMo

Special functions: -

Number of Diaphragm Blades: 9

Minimum aperture: 22

Shortest focal length (m): 0.27 (at 28 mm) (manual focus: 0.24)

Maximum magnification (x): 0.24 (at 70 mm)

Vezérlőgyűrű: Kombinált/fókusz

OIS image stabilization¹: 5,5

IBIS x OIS image stabilizer¹: 7,5

AF controller: stepping motor

Coatings: Super Spectra

Fluorine: None

Physical parameters

Dust and moisture resistance³: Yes

External coating: –

Filter size (mm): 67

Max. diameter × length (mm)²: 76,5×92,2

Weight (g): 490

Accessories

Lens cap: E-67 II

Lens Hood: EW-73D

Lens bag: LP1116

Rear cap: RF dust cover lens cap

Extender compatibility: Not compatible

NOTES

1 Tested according to CIPA standards

2 Lens size in retracted position

3 Dust and moisture-resistant lenses have a rubber ring on the mount lock, which may cause slight friction on the

with the camera. This does not affect the performance of the lens or the camera
