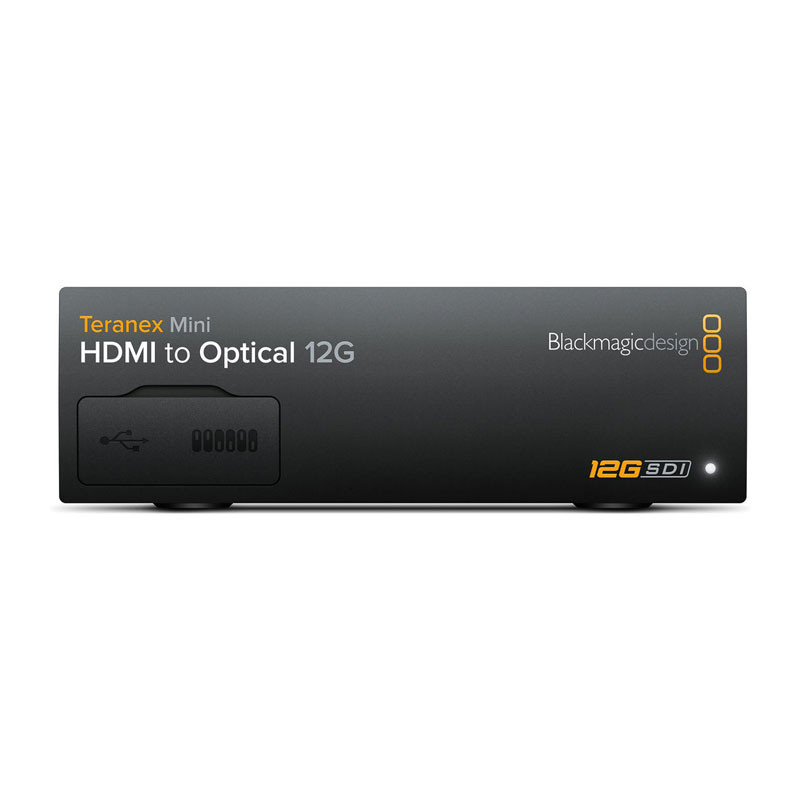

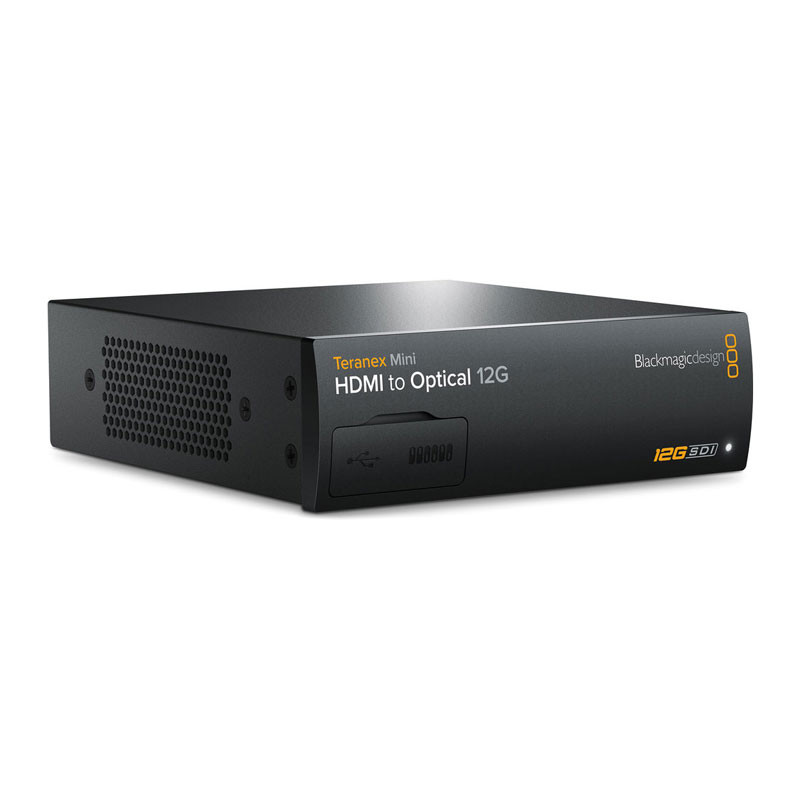

Blackmagic Design Teranex Mini - HDMI To Optical 12G

The Teranex Mini HDMI to Optical 12G Converter from Blackmagic Design allows you to convert an HDMI signal to a 12G-SDI output, or install an optional optical fiber module and convert an HDMI signal to fiber. In either case, the output will automatically match the HDMI input resolution. Up to DCI 4K (4096 x 2160) 60p resolution is supported on both input and output. The Teranex Mini HDMI to Optical 12G Converter also features full-size XLR inputs that are switchable between balanced analog and AES/EBU digital audio, and which allow you to connect separate audio. The converter also has an Ethernet port that allows you to manage the converter remotely from a Mac or Windows computer using the included Converter Utility software. This capability is especially useful when you're in a larger facility using numerous converters.

The Ethernet port can alternatively be used for Power-over-Ethernet (PoE). If you don't want to use PoE, you won't have to deal with cumbersome power supplies, as the Teranex Mini features a built-in 90-240V power supply, and all you'll need is a standard IEC power cable, sold separately.

The standard front panel can be replaced with an optional Smart Panel that offers a spin knob, color LCD, and six control buttons, including a menu button. The substantially large LCD will show you the video conversion in progress and will also let you monitor audio levels and verify timecode. The standard front panel simply comes off and the Smart Panel easily attaches in its place. When you're using the standard front panel, you'll have access to an array of mini switches that will let you change settings instantly in correspondence with a diagram printed on the converter. If you swap in the optional Smart Panel, you'll instead be able to use simple on-screen menus while seeing exactly what you're converting.

The Teranex Mini is designed with intelligent heat dissipation that prevents overheating. What makes this feature so effective is a smart thermal design with crossflow cooling that achieves the optimal heat dissipation even when you have units rack-mounted side-by-side one another. An intelligent thermal subsystem and internal heat pipe assist with cooling and keep the air flowing at all times while minimizing noise. Moreover, if the Teranex Mini gets too hot, you'll instantly receive a notification through the remote control Ethernet utility and on the front panel.
